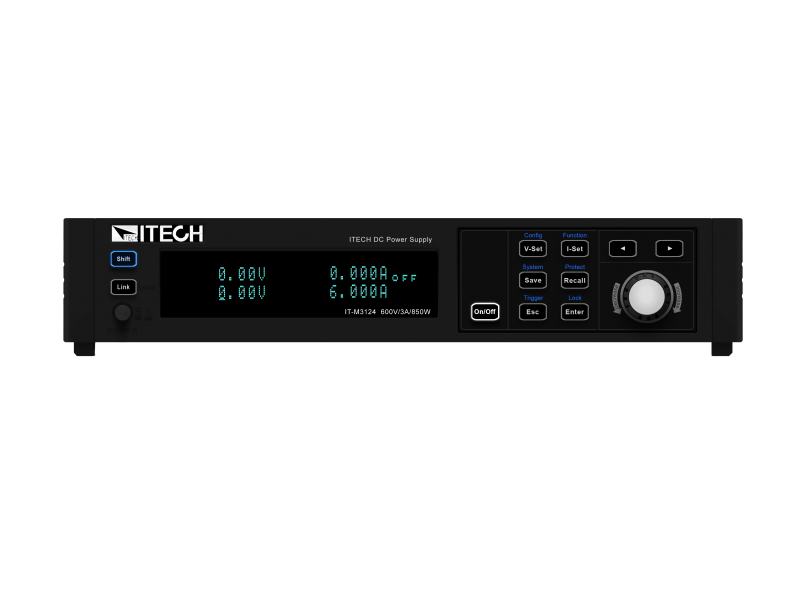

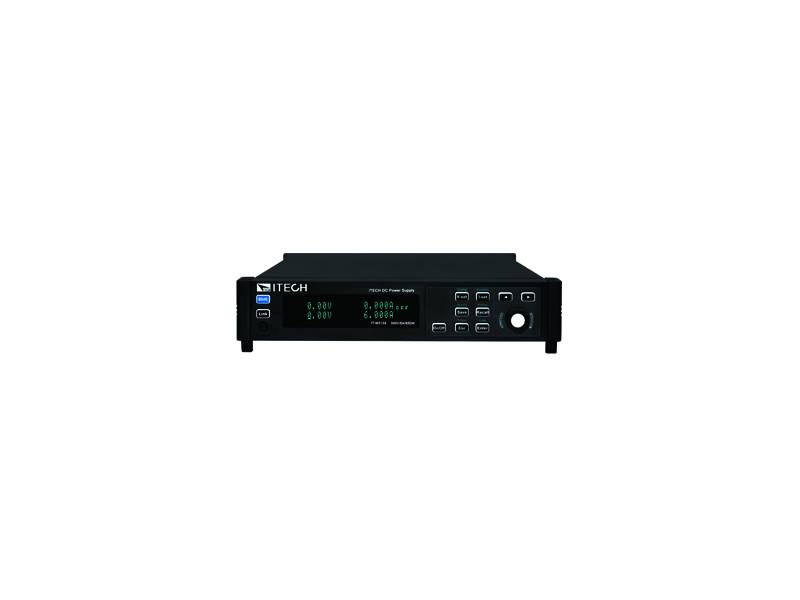

Zasilacz DC ITECH IT-M3124 seria IT-M3100

Zasilacz DC ITECH IT-M3124 seria IT-M3100

Zasilacz DC ITECH IT-M3124 seria IT-M3100

Zasilacz DC ITECH IT-M3124 seria IT-M3100

Zasilacz DC ITECH IT-M3124 seria IT-M3100

Zasilacz DC ITECH IT-M3121 30V/70A/850W 10mV/10mA seria IT-M3100

30V/70A/850W 10mV/10mA

0,00 zł netto 0,00 zł brutto

Dostępność: Na zamówienie

Opis

Kompaktowy zasilacz, ½ 1U do szaf typu RACK

* 30V

* 70A

* 850W

* 10mV/10mA ≤0.03%+20mV/≤0.1%+70mA

Opcja: RS232/CAN/LAN/ GPIB/USB/RS485/ external analog

♦ Adjustable rising/falling speed of output current, to meet various test applications
♦ High speed test, up to 10 times per second
♦ Up to 100 steps LIST operation, support output of various dynamic waveforms
♦ Support CC/CV loop speed and priority setting

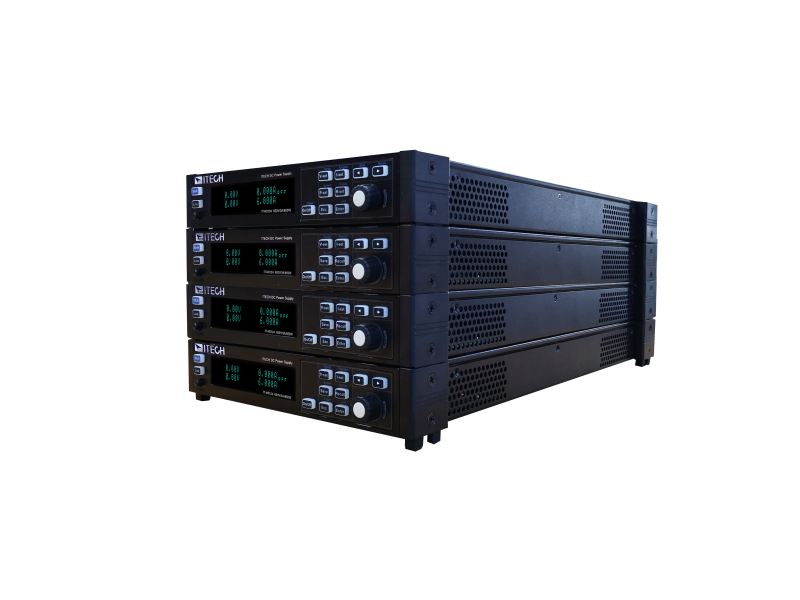

♦ Parallel or series operation can be easily controlled by one unit
♦ Independent control of multi- channels, one communication card can control up to 16 channels, max.256 channels
♦ Support output of different timings of each channel, can synchronize or delay the output, and supports the output of different ratios of voltage
♦ Support CANOPEN, LXI, SCPI and other communication protocols
♦ Five optional cards for plug-and-play function, providing RS232, CAN, LAN, GPIB, USB_TMC, USB_VCP, RS485, external analog and IO r communication interfaces
♦ Support TRACE function, can draw voltage and current waveforms in real time ( Supported by program)
♦ Battery charging test function
♦ Software watchdog provides more reliable and safe automatic battery test solution
♦ Various protection functions such as OVP, ±OCP, ±OPP, OTP, ensure secure testing
♦ Provide self-locking function, when the device is self-locked, the device will not be able to output
