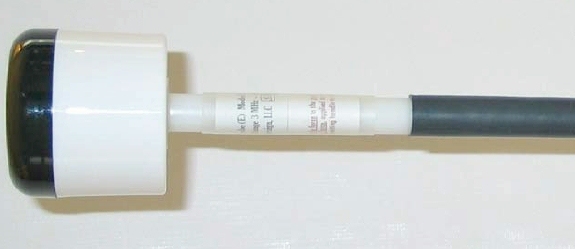

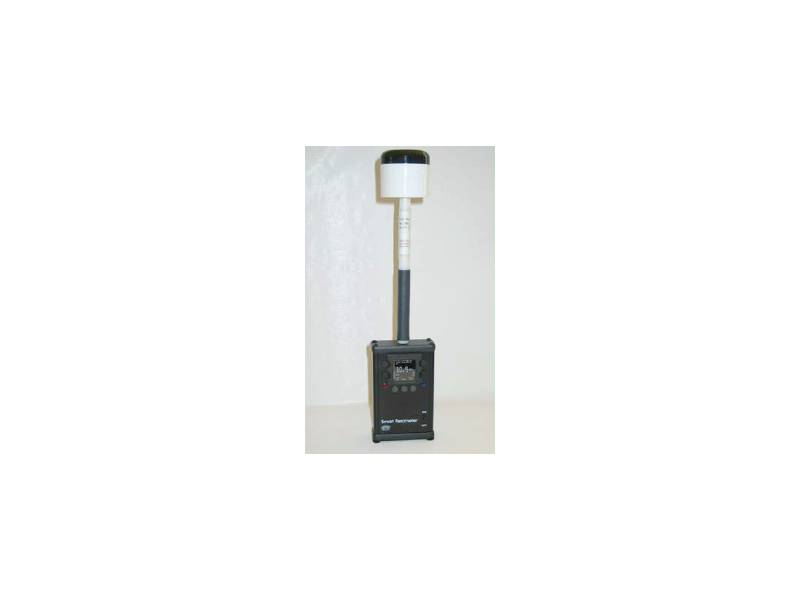

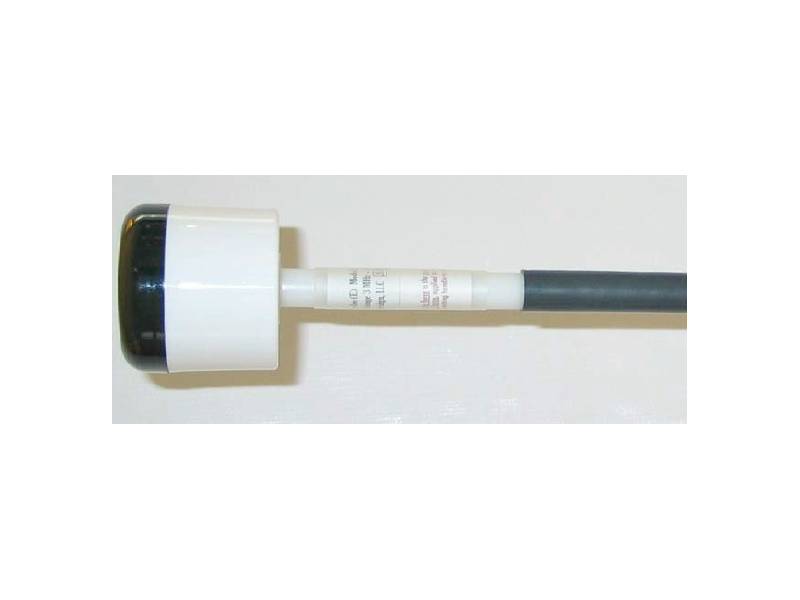

Sonda impulsowa PI03 do 18GHz – pomiar pól radarów, do zastosowań w wojsku
3 MHz-18 GHz, 0.8 – 800 V/m
Diode based: 3-Axial isotropic sensor.
• Sensitivity: 0.8 V/m.
• Linearity: +/- 0.5 dB (1-400 V/m),
+/- 1 dB (400-800 V/m).
• Dynamic range: >60 dB (single range).
• Frequency response (without correction factors): +/- 1.5 dB (10 MHz–6 GHz), -3 dB @ 3 MHz,
+/- 3 dB (6 GHz–12 GHz).
• Frequency response (with correction factors): +/- 1.0 dB (10 MHz–12 GHz), +/- 3 dB (12 GHz–18 GHz).
• Rotational isotropicity: +/- 0.5 dB (3 MHz-6 GHz), +/- 2 dB (6 GHz –18 GHz).
• Calibration accuracy (at specified freq.) <1 dB.
• Temperature: 5-40°C,
• Humidity: RH 10-90%, non-condensing.
• Temperature error: <0.05 dB/°C (field > 2 V/m).
• UK NPL or NIST traceable calibration.
• Small size: LxD: 9.0×2.25 inch, 230×58 mm.
• Weight: 0.2 lb, 100 g.

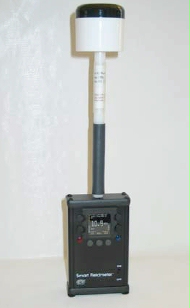

• Operates with both RFP-04 and RFP-05 meters.
• Designed and made in the USA.
