2½-portowy VNA z Biag Generatorem
-
Zakres częstotliwości 400MHz to 6GHz
-
Measuring power -30 to +5dBm
-
Data up to 20000 points
-
Port calibrated
-
Signal Generator output
-
Parametric sweeps
-
Bias Voltage/Current generator

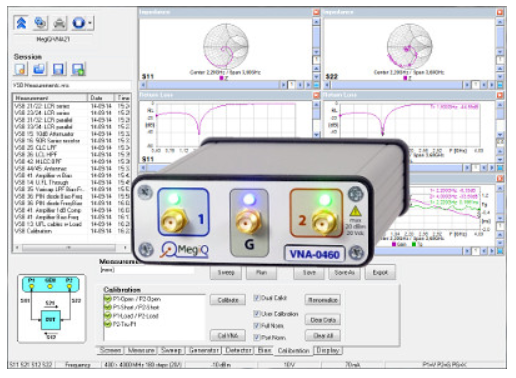

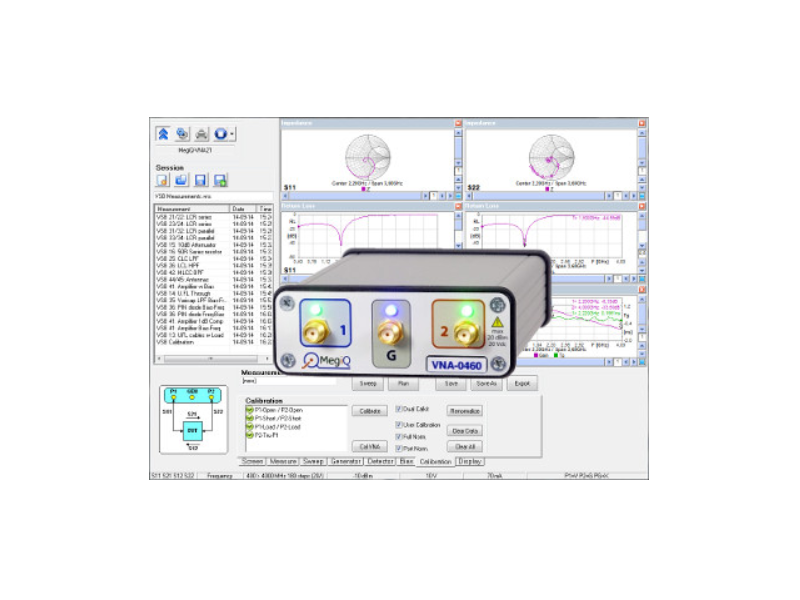

The VNA-0460e is full bi-directional 2½-port Vector Network Analyzer that is controlled from a PC through a USB connector.
This VNA is ideal for measuring all kinds of micro-circuits like antennas, attenuators, amplifiers etc. Its frequency range includes most popular telecom bands like GSM-GPRS-LTE, Wifi, DECT, GPS, ISM, Zigbee, Bluetooth.
With its small size it can also be used near the antenna inside a large device or installation. It’s also ideal for on-site measurements.
The extra Generator port provides an additional signal port that can be used for measuring 3-port devices.
A built-in Bias Generator provides a voltage/current source from -12V to +12V and 100mA. Each of the three ports can be routed to either the bias voltage, ground, or open.
Included in the product are
-
VNA-0460e
-

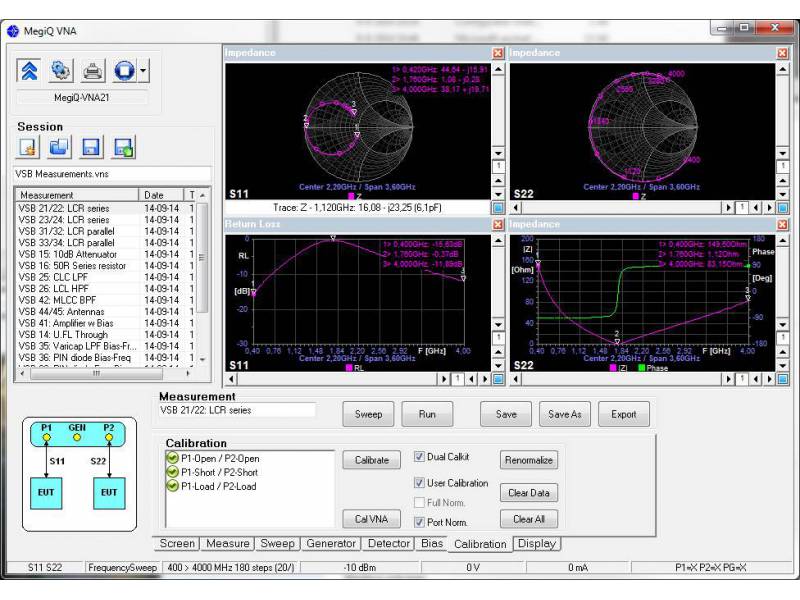

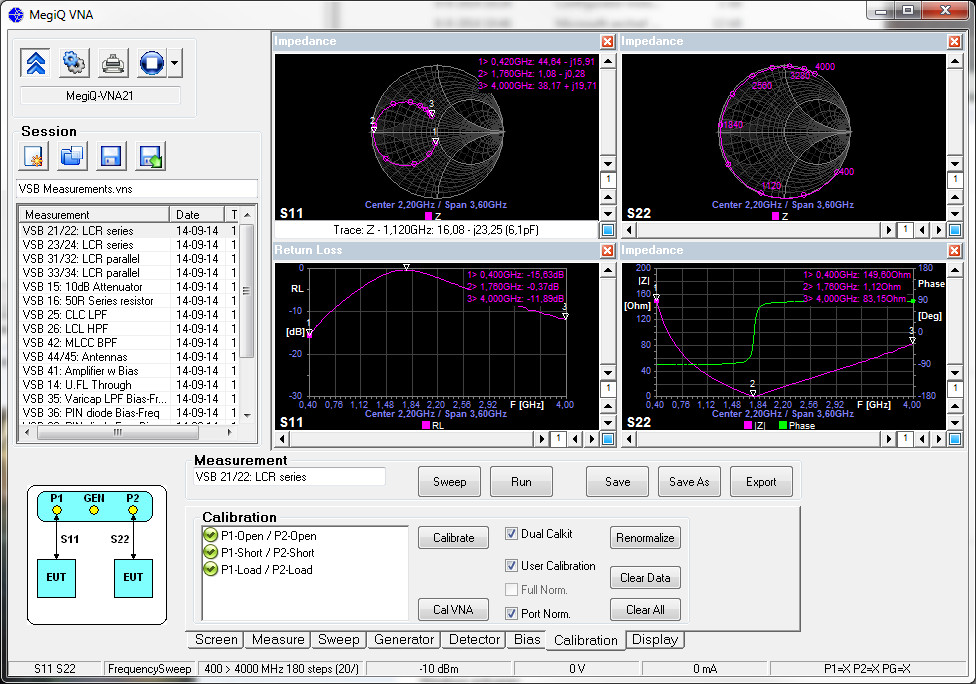

PC-software, for controlling, saving data &set-ups, analysis, reporting, etc.
-
Power supply and USB Cable
-
Documentation
-

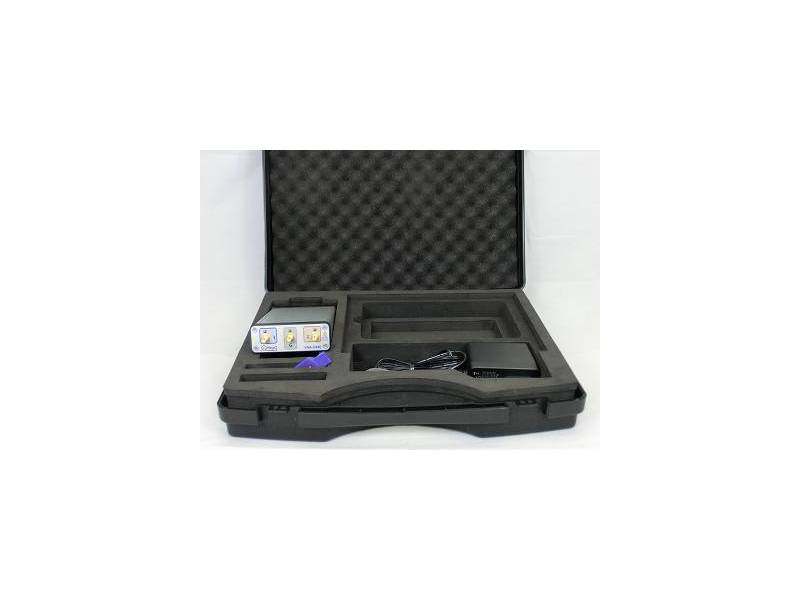

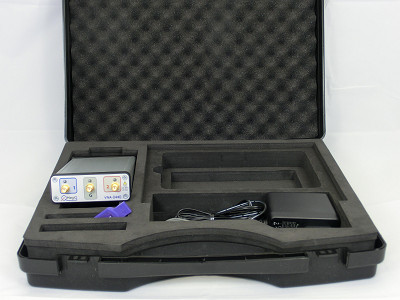

Carrying case
